| TUSBI-RM |
 |
GENERAL AND RESTAURANT DUTY UTILITY SET |
|
|
| |
|
|
| |
- Air Volume: 250 – 28,000 cfm
- Maximum SP: 6" wg. @ standard air density
|
| |
|
|
| |
| |
|
|
| |
- Use with General Ventilation (UL705) and ULC-S645
- Vented Motor Cover and Continuously Sealed Housing for added weather protection
- Scroll and Motor Compartment Connected for added Structure
- Easily Accessible Clean Out Door and Motor Access from 3 Sides
- Standard 2" Grease Drain
- Standard Emergency Disconnect Switch
- Standard Heat Slinger and Heavy Duty Pillow Block Bearings for Belt Drive option
- Standard Shaft Seal for Belt Drive option
- Standard Pivot Plates for easy Belt Adjustment
- Double Groove Pulleys standard for 2 HP and Above Motors
- Discharge Outlet Flanges Available on All Sizes
- Temperature Ratings - Aluminum Wheel, 350 degrees F
|
|
|
|
| |
- Belt Drive
- Belt Drive High Pressure
- Direct Drive

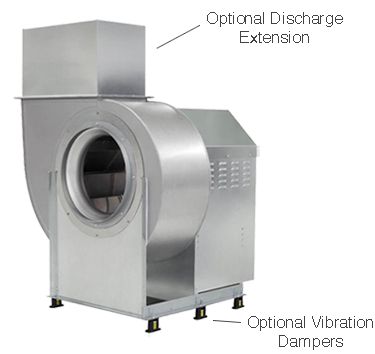

- Discharge Extension
- Discharge Screens
- Discharge Shutter (UL705 Only)
- Discharge Configurations: Vertical, Horizontal Left or Horizontal Right
- Vibration Isolators
- Extended Lube Lines
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
Thermotek certifies that Models TUSBI11-RM thru TUSBI36-RM shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program.
Models TUSBI11-RM thru TUSBI36-RM are ETL Listed under file numbers 103336443COL-001 and 102628244PRT-001 and comply with UL705 (electrical), and ULC-S645 Standards and CSA Std C22.2, No 113.
|
|
|
| |
| Catalog #110T |
| December 2013 |
|
|
|
