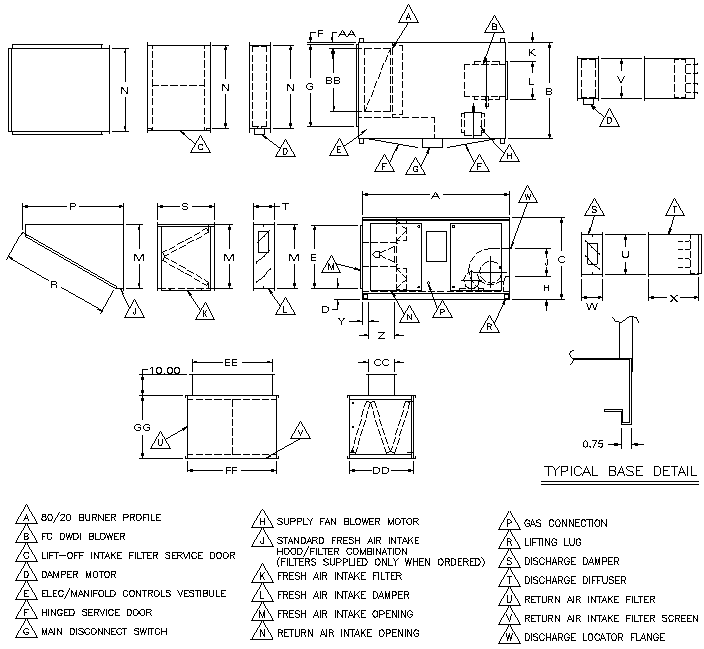

| tth-m 12M & 15M -- Arrangement H1 Horizontal Discharge |
|
|
|
| A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
| 70 |
46 |
38 |
5.5 |
30 |
1 |
39.25 |
10.5 |
18.75 |
8.5 |
18.75 |
30.25 |
39.5 |
48 |
|
| R |
S |
T |
U |
V |
W |
X |
Y |
Z |
AA |
BB |
| 51.66 |
27 |
10 |
19 |
19 |
10 |
24 |
4.5 |
11.5 |
4.5 |
29.5 |
|
| CC |
DD |
EE |
FF |
GG |
FA Filter Qty |
FA Filter / Hood Qty |
RA Filter Qty |
| 11.75 |
24.25 |
29.75 |
39.5 |
30 |
(4) 20 x 25 |
(4) 20 x 25 |
(4) 20 x 25 |
|
|
