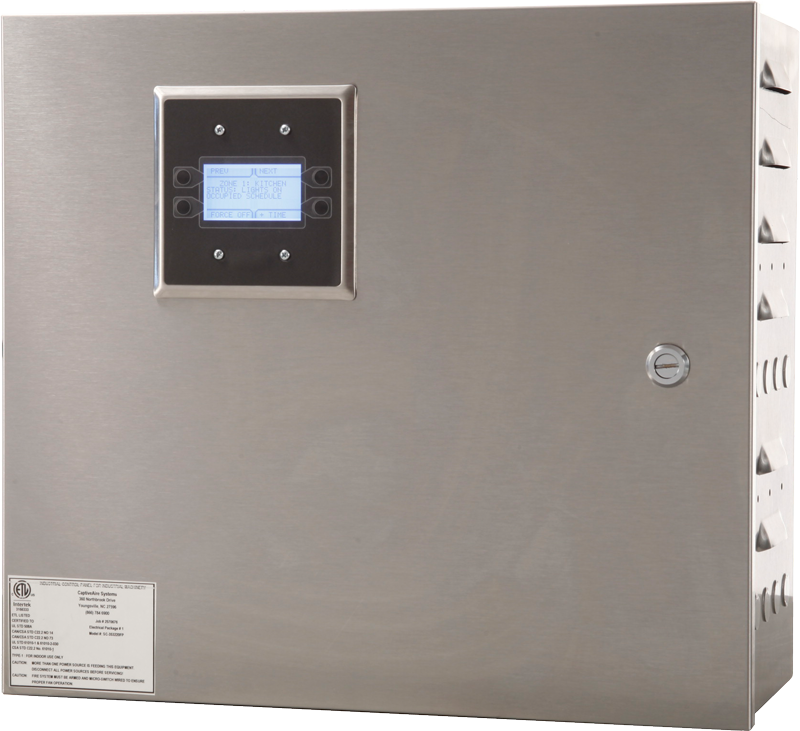

Lighting Control Panel |
 |
|
|
| |
|
|
|
|
| |
| |
|
|
| |
- Fully automatic light control
- Up to 8 contactors per panel
- Group contactors into control zones
- Easy-access local override control from each HMI
- HMI on the enclosures and up to 9 more connected with a single cat5 cable
- Seven 120VAC inputs per panel allow for connection of switches, photocells, and occupancy sensors
- Advanced programmable control logic based on schedules and inputs
- Automatic daylight-savings time adjustment
- Automatically override schedule through stored holidays
- Internal hardware Auto/Off/Manual switches
- Can interface with LonWorks and BACnet
- All On/All Off inputs
|
|
|
|
| |
- Contactor Options:
- 40 Amp 4-Pole
- 70 Amp 3-Pole
- Terminal Blocks for controlling field mounted contactors
- Sensors Options:
- Photocells
- Occupancy Sensors
- Terminal blocks for customer supplied 120VAC sensors
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
