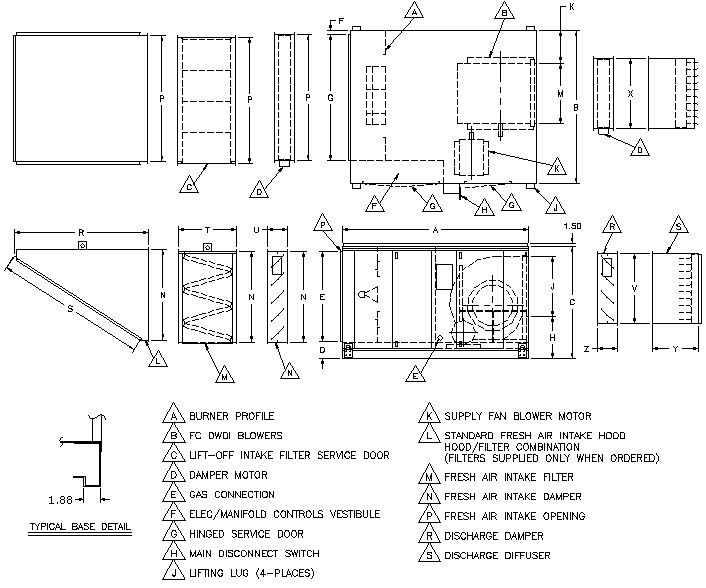

| TTH 18 to 36 -- Arrangement H1 Horizontal Discharge |
|
|
| Models |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
M |
N |
P |
| 18 |
82 |
60 |
54 |
8.5 |
40.5 |
2 |
56 |
18.5 |
19.13 |
12.5 |
22.13 |
40.75 |
56.25 |
| 20 |
82 |
60 |
54 |
8.5 |
40.5 |
2 |
56 |
18.94 |
25 |
12.5 |
23 |
40.75 |
56.25 |
| 22 |
100 |
79 |
58 |
8.5 |
46.5 |
2 |
76 |
20.31 |
27.5 |
15.5 |
27.5 |
46.75 |
76.25 |
| 25 |
100 |
79 |
58 |
8.5 |
46.5 |
2 |
76 |
21.75 |
31.5 |
15.5 |
31.5 |
46.75 |
76.25 |
| 27 |
100 |
88 |
66 |
10.5 |
52.5 |
2 |
80 |
23 |
34.5 |
15.5 |
34.5 |
52.75 |
80.25 |
| 30 |
100 |
88 |
66 |
10.5 |
52.5 |
2 |
80 |
24.88 |
37 |
15.5 |
37 |
52.75 |
80.25 |
| 33 |
112 |
98 |
76 |
11.5 |
59.5 |
2 |
92 |
22 |
43.19 |
18.5 |
40 |
59.75 |
92.25 |
| 36 |
112 |
98 |
76 |
11.5 |
59.5 |
2 |
92 |
22 |
43.19 |
15.5 |
43 |
59.75 |
92.25 |
|
| Models |
R |
S |
T |
U |
V |
X |
Y |
Z |
FA Filter Qty |
FA Filter/Hood Qty |
| 18 |
69.5 |
76 |
28 |
10 |
19.38 |
22.38 |
24 |
10 |
(6) 20 x 25 & (3) 16 x 25 |
(6) 20 x 25 & (3) 16 x 25 |
| 20 |
69.5 |
76 |
28 |
10 |
25.25 |
23.25 |
24 |
10 |
(6) 20 x 25 & (3) 16 x 25 |
(6) 20 x 25 & (3) 16 x 25 |
| 22 |
69.5 |
76 |
28 |
10 |
27.75 |
27.75 |
24 |
10 |
(9) 20 x 25 & (3) 16 x 25 |
(9) 20 x 25 & (3) 16 x 25 |
| 25 |
69.5 |
76 |
28 |
10 |
31.75 |
31.75 |
24 |
10 |
(9) 20 x 25 & (3) 16 x 25 |
(9) 20 x 25 & (3) 16 x 25 |
| 27 |
95.25 |
101 |
28 |
10 |
34.75 |
34.75 |
24 |
10 |
(20) 20 x 25 |
(16) 20 x 25 |
| 30 |
95.25 |
101 |
28 |
10 |
37.25 |
37.25 |
24 |
10 |
(20) 20 x 25 |
(16) 20 x 25 |
| 33 |
91.25 |
101 |
28 |
10 |
43.25 |
40.25 |
24 |
10 |
(15) 20 x 25 & (10) 16 x 25 |
(12) 20 x 25 & (8) 16 x 25 |
| 36 |
91.25 |
101 |
28 |
10 |
43.25 |
43.25 |
24 |
10 |
(15) 20 x 25 & (10) 16 x 25 |
(12) 20 x 25 & (8) 16 x 25 |
|
|
