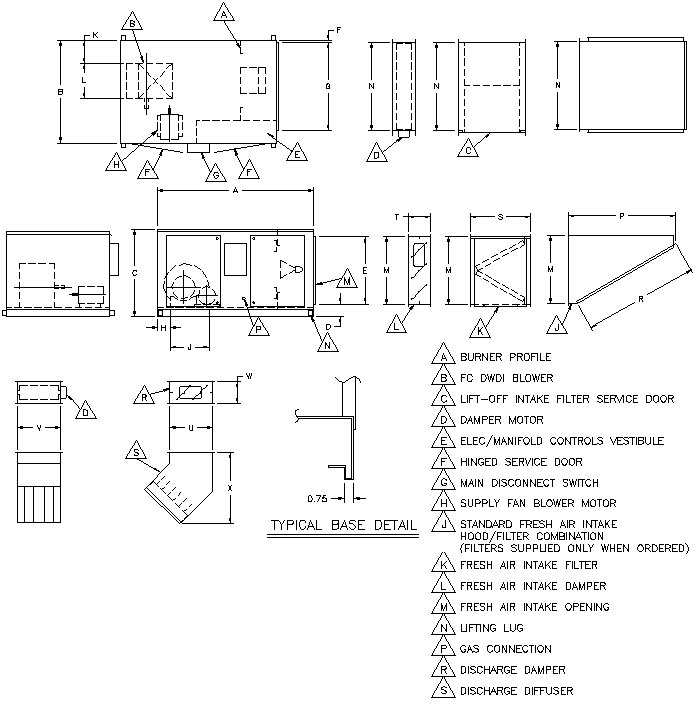

TTH 10 to 15 -- Arrangement H5 Down Discharge

A	B	C	D	E	F	G	H	J	K	L	M	N	P
70	46	38	5.5	30	1	39.25	8.5	18.75	8.5	18.75	30.25	39.5	48

R	S	T	U	V	W	X	FA Filter Qty	FA Filter/Hood Qty
51.66	28	10	19	19	10	24	(4) 20 x 25	(4) 20 x 25
