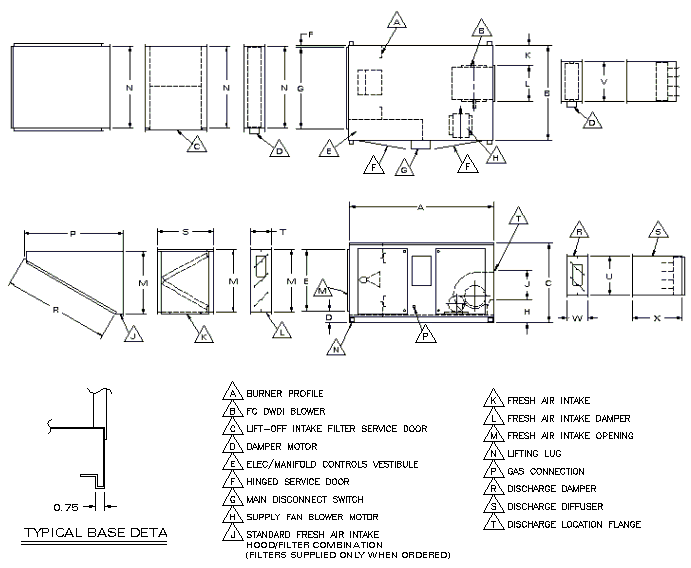

| TTH 10 to 15 -- Arrangement H1 Horizontal Discharge |
|
|
| Models |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
| 10 |
70 |
46 |
38 |
5.5 |
30 |
1 |
39.25 |
7 |
18.75 |
8.5 |
18.75 |
30.25 |
39.5 |
48 |
| 12 & 15 |
70 |
46 |
38 |
5.5 |
30 |
1 |
39.25 |
10.5 |
18.75 |
8.5 |
18.75 |
30.25 |
39.5 |
48 |
|
| Models |
R |
S |
T |
U |
V |
W |
X |
FA Filter Qty |
FA Filter/Hood Qty |
| 10 |
51.66 |
28 |
10 |
19 |
19 |
10 |
24 |
(4) 20 x 25 |
(4) 20 x 25 |
| 12 & 15 |
51.66 |
28 |
10 |
19 |
19 |
10 |
24 |
(4) 20 x 25 |
(4) 20 x 25 |
|
|
